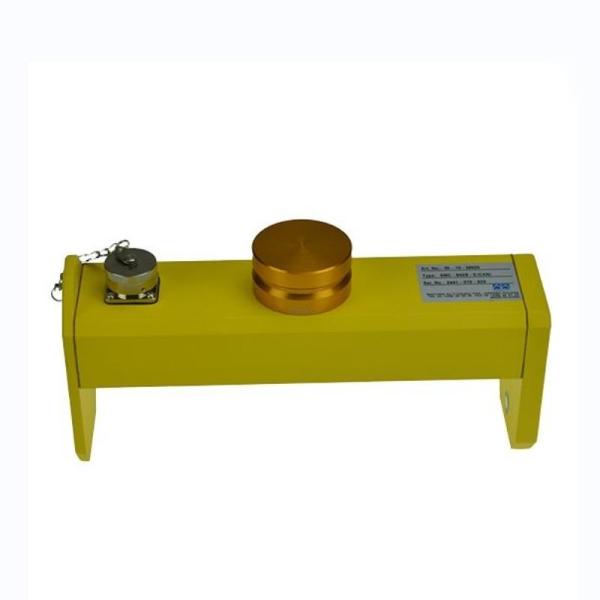

Accurate and Stable Slipform Paver Parts Non-Contact Ultrasonic Leveling Instrument

Product description

The non-contact ultrasonic leveling instrument plays an irreplaceable role in road construction. It can greatly improve the smoothness and slope accuracy of roads, providing strong guarantees for driving safety and comfort.

By accurately measuring changes in road surface height, the road surface is ensured to be uniform and smooth, reducing bumps and vibrations. This is particularly important for roads with high traffic flow such as highways and urban main roads, as it can reduce vehicle wear and fuel consumption and improve traffic operation efficiency.

Leveling instrument features:

1. The digital leveling instrument separates the signal part and the output part originally integrated in the analog leveling, and connects through the data line, so the performance is more stable.

2. The display of the controller is more intuitive. Even if it is working at night, if there is a fault, it can be found as soon as possible, so that the fault can be solved faster.

3. The controller has high-level and low-level outputs, which can meet the needs of different paver machines, so there is no need to replace the instrument.

4. According to the difference in the response speed of the leveling cylinder of different paver machines, adjust the controller parameters to meet the requirements of on-site paving construction.

5. When you need to adjust the thickness, you only need to adjust it with the up and down keys, which is easy to use.

Technical Parameters

SMC-0428 digital controller technical parameters:

SMC-0428 Transverse slope sensor technical parameters:

Precautions for use
1. Proper installation and calibration
The installation position should be accurate to ensure that the sensor can accurately detect road conditions. Strict calibration must be carried out before construction to ensure the accuracy of measurements.

2. Choose the appropriate benchmark
Select appropriate reference lines or surfaces based on construction requirements and site conditions.
For example, steel wire ropes can be chosen as benchmarks in straight sections, while aluminum alloy beams may need to be used as benchmarks in bends.

3. Regular maintenance and inspection
Timely clean the debris and dirt on the sensor to ensure its normal operation. Check if the connection lines are loose to avoid signal transmission failures.

Siming company is the first manufacturer in China for series concrete slip form paver which includes four-crawler type SMC-6600,SMC-6500; three crawler type SMC-5500,SMC-5000; one crawler type SMC523,and extruder SMC450. The slipform pavers are applied to on site pouring many types of concrete structures such as road, sidewalk, curb&gutter, gutter, barrier¶pet etc. Compared with traditional precast method, our machines are featured with high operation speed( max paving speed to 15m/min), high strength, good shaping, low cost and high efficiency etc. For more information, please visit our website www.simingcn.com or email to market@simingcn.com
